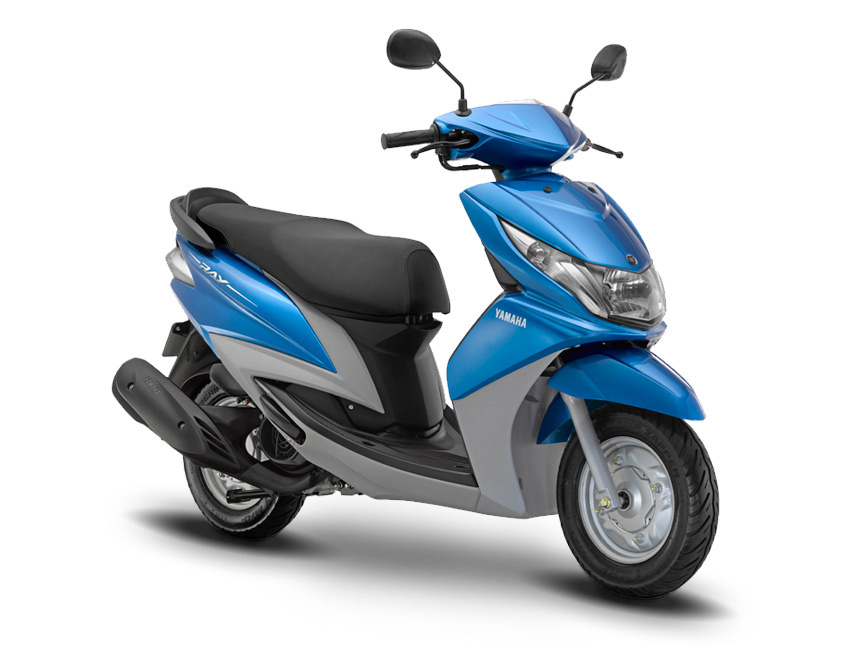

Yamaha RAY
₹ 48,105
| Dimensions | ||
|---|---|---|
| Full Length(mm): | 1835 mm | |
| Full Width(mm): | 675 mm | |
| Full Height(mm): | 1075 mm | |
| Wheelbase(mm): | 1270 mm | |
| Ground Clearance(mm): | 128 mm | |
| Fuel Tank Capacity(litre): | 5 litre | |
| Engine | ||
| Kerb Weight(Kg): | 104 Kg (Heavy) | |
| Engine Type: | Air-cooled, 4-stroke, SOHC, 2-valve | |
| Displacement CC: | 113 CC | |
| Max Power: | 5.22 KW (7.0 BHP) @ 7500 RPM | |
| Max Torque: | 8.1 Nm @ 5000 RPM | |
| Bore x Stroke: | 50.0 × 57.8 | |
| Compression Ratio: | 9.2:1 | |
| Starting: | Electric and Kick | |
| Ignition: | C.D.I (Capacitor Dis | |
| Clutch: | Dry, centrifugal | |
| Gear Box: | Automatic | |
| Chassis Type: | Underbone | |
| Front Suspension: | Telescopic | |
| Brakes | ||
| Rear Suspension: | Unit swing | |
| Front Brakes: | Drum 130mm dia | |
| Wheels & Tyres | ||
| Rear Brakes: | Drum 130mm dia | |
| Tyre Size Front: | 90/100-10 53J(Tube type) | |
| Electricals | ||
| Tyre Size Rear: | 90/100-10 53J(Tube type) | |
| Battery: | 12V, 5Ah | |
| Head Light: | 12V - 35/35W ( Halogen bulb ) | |
| Tail Stop Lamp: | 12V,21W/5W X1 | |
| Other Features | ||
| Tail Signal Lamp: | 12V, 10W X2 | |
| Features: | ||
Powerful 113cc air-cooled 4-stroke SOHC engine Comfortable Seat with Grab Bar Under Seat Storage Dynamic HeadLight Crystal Lens Panel Longer Rear Fender Stylish TailLight Inner Box and Convenient Hook Easy Leg Shield with easy leg reach Top speed of 85 km/h | ||
| Colors: | Plsuh Pink, Black Star, Shining Blue, Burgundy Bliss, Purple Pastel, Grey Grandeur, | |
| Mileage Highway: | 62 km/l | |
| Mileage City: | 40 km/l | |
| Mileage Overall: | 45 km/l | |
