| Dimensions | ||
|---|---|---|
| Full Length(mm): | 1795 mm | |
| Full Width(mm): | 675 mm | |
| Full Height(mm): | 1124 mm | |
| Wheelbase(mm): | 1270 mm | |
| Ground Clearance(mm): | 128 mm | |
| Fuel Tank Capacity(litre): | 5.2 litre | |
| Engine | ||
| Kerb Weight(Kg): | 104 Kg (Heavy) | |
| Engine Type: | Air-cooled, 4-stroke, SOHC, 2-valve | |
| Displacement CC: | 113 CC | |
| Max Power: | 5.3 KW (7.0 BHP) @ 7500 RPM | |
| Max Torque: | 8.1 Nm @ 5000 RPM | |
| Bore x Stroke: | 50 x 57.5 | |
| Compression Ratio: | 9.20:1 | |
| Starting: | Electric & Kick | |
| Ignition: | CDI(Capacitor Discharge lgnition) | |
| Clutch: | Dry, centrifugal automatic | |
| Gear Box: | V-belt automatic | |
| Chassis Type: | Steel pipe underbone | |
| Front Suspension: | Telescopic | |
| Brakes | ||
| Rear Suspension: | Unit swing | |
| Front Brakes: | Drum | |
| Wheels & Tyres | ||
| Rear Brakes: | Drum | |
| Tyre Size Front: | 90/100-10 (53J) | |
| Electricals | ||
| Tyre Size Rear: | 90/100-10 (53J) | |
| Head Light: | 12V 35/35W | |
| Other Features | ||
| Features: | ||

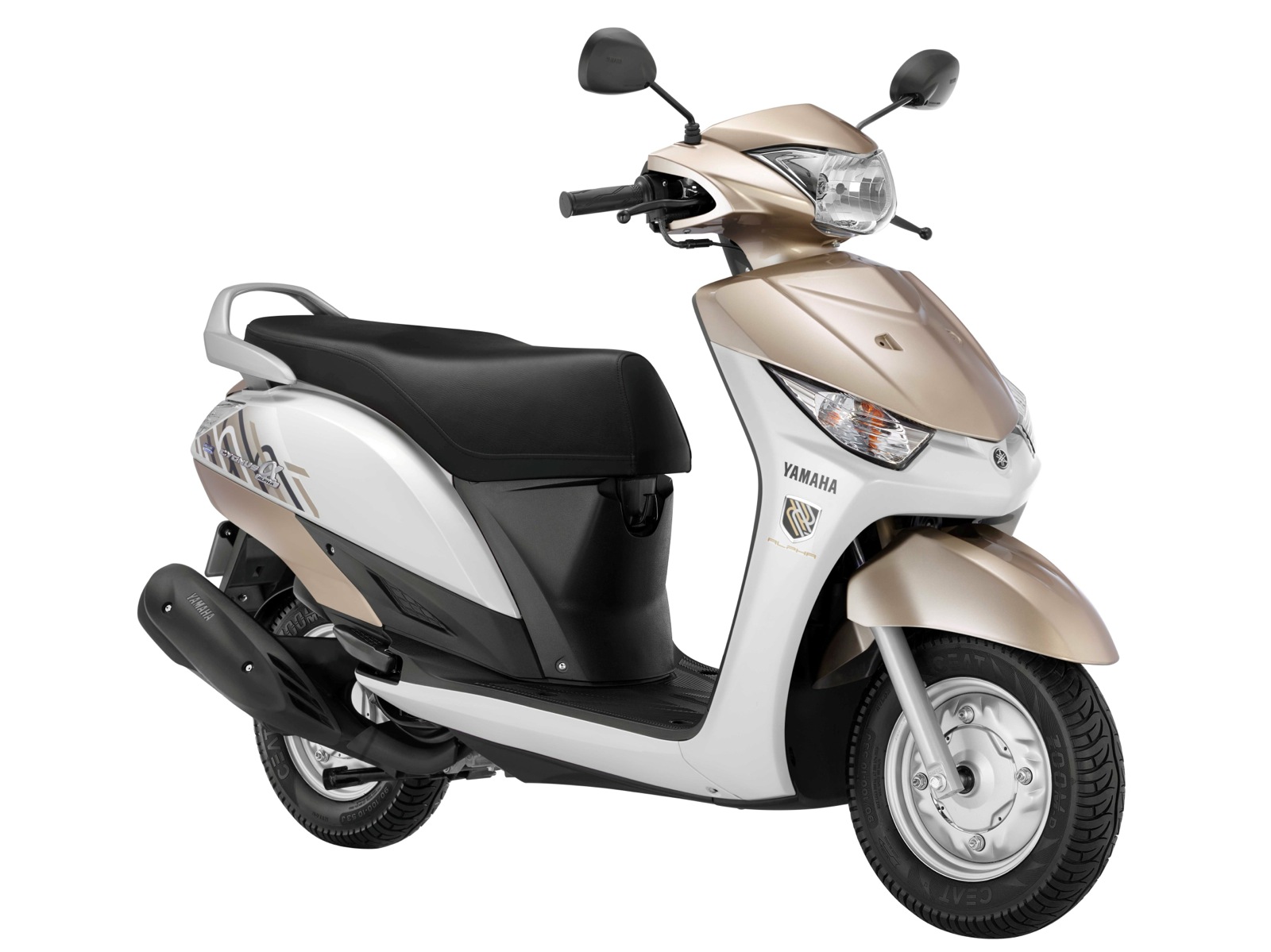

The air cooled 113 cc engine with a (CVT) continuously variable transmission provides smooth acceleration and pleasing pickup. The BS24 carburettor with Throttle Positioning (TPS) and Yamaha’s engine concept idea Blue Core delivers outstanding running performance, excellent fuel efficiency and good emission quality. Designed for a smooth ride even over rough roads, the telescopic suspension of the Alpha keeps the rider and passenger stable & comfortable. The headlight is an added safety for night riding. With the handle mount design, the rider gets better visibility even on turns. The flat and long seat keeps the riders & pillion comfortable. A distance of 800 mm from the foremost point to the grab-bar helps provide added hip area to the tandem rider. The new seat with its unique shape is at a height of 775 mm. This not only ensures comfortable seating but also enables easy leg reach to the ground. The footboard shape has a simplified foot placement area which also makes it easier to reach the ground. The 21 litres waterproof storage area under the seat can hold most full-face helmets. The tail area of the under-seat space is designed to hold on-board tools and small items such as a waste cloth. The 250 mm wide & flat footboard in the foot placement area is free of obstruction and ensures both spacious & comfortable leg space. This design ensures all the information is easy to read under all light conditions. The easy-to-grip grab-bar ensures greater tandem passenger comfort. The grab-bar features aluminum with paint finish. The convenient hook is perfect for carrying shopping bags with ease. The bags can easily be attached to the hook so that the rider can ride without any hassle. | ||
