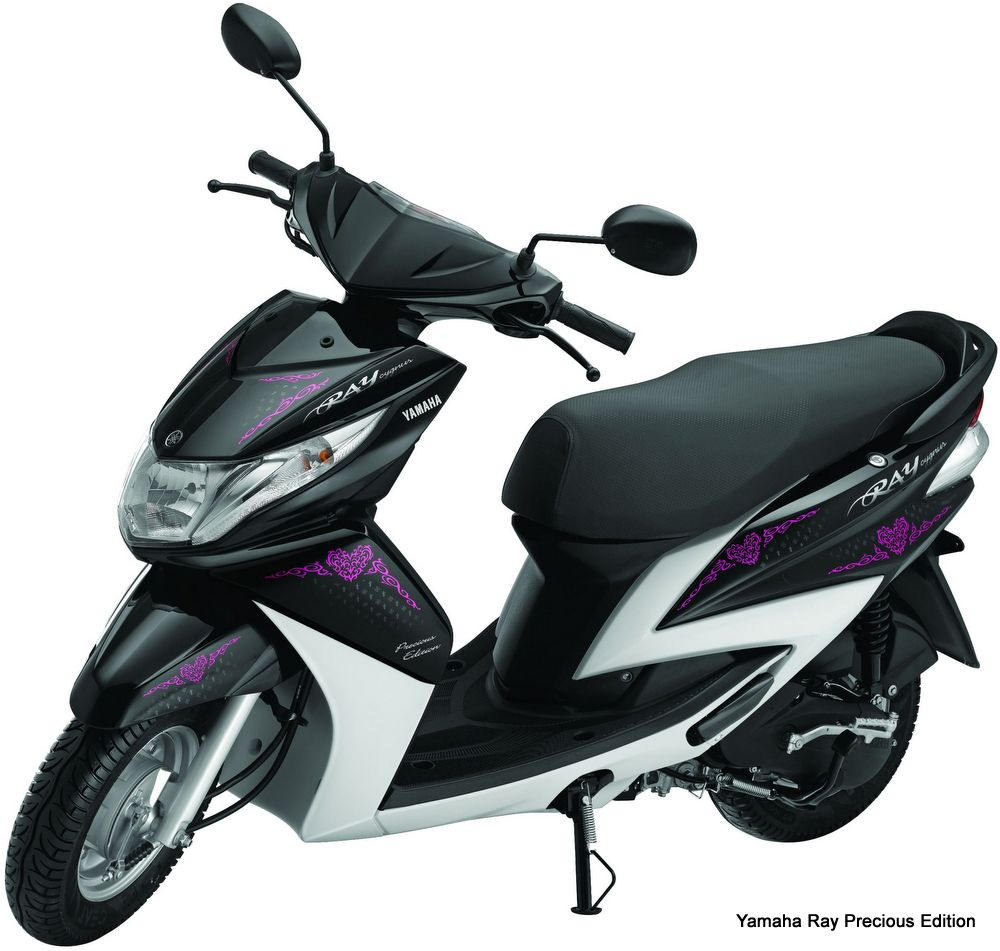

Yamaha Ray Precious Edition
₹ 48,605
| Dimensions | ||
|---|---|---|
| Full Length(mm): | 1835 mm | |
| Full Width(mm): | 675 mm | |
| Full Height(mm): | 1075 mm | |
| Wheelbase(mm): | 1270 mm | |
| Ground Clearance(mm): | 128 mm | |
| Fuel Tank Capacity(litre): | 5 litre | |
| Engine | ||
| Kerb Weight(Kg): | 104 Kg (Heavy) | |
| Engine Type: | Air cooled, 2-valve 4-stroke, SOHC | |
| Displacement CC: | 113 CC | |
| Max Power: | 7.1PS@7500RPM | |
| Max Torque: | 8.1Nm@5000RPM | |
| Bore x Stroke: | 50 X 57.8 | |
| Starting: | Electric and Kick | |
| Ignition: | C.D.I (Capacitor Discharge Ignition) | |
| Clutch: | Dry, centrifugal | |
| Gear Box: | V-belt automatic | |
| Front Suspension: | Telescopic | |
| Brakes | ||
| Rear Suspension: | Unit swing | |
| Front Brakes: | Drum - 130 mm dia | |
| Wheels & Tyres | ||
| Rear Brakes: | Drum - 130 mm dia | |
| Tyre Size Front: | 90/100-10 53J(Tube type) | |
| Electricals | ||
| Tyre Size Rear: | 90/100-10 53J(Tube type) | |
| Battery: | 12V,5.0Ah(10H) | |
| Head Light: | 12V, 35W/35W X1, Halogen Bulb | |
| Other Features | ||
| Features: | ||
Flaunt your style with the all new Sygnus Ray “Yamaha Ray Precious Edition”. Dressed in all black. It is adorned with delicate pink design to add a little glamour to your everyday rides.a new avatar the Ray called Beauty and Black receives some new graphics and paints as it gets an overall black finish with pink accents | ||
| Colors: | Black with Pink Patterns | |
| Mileage Highway: | 55 km/l | |
| Mileage City: | 45 km/l | |
| Mileage Overall: | 50 km/l | |
