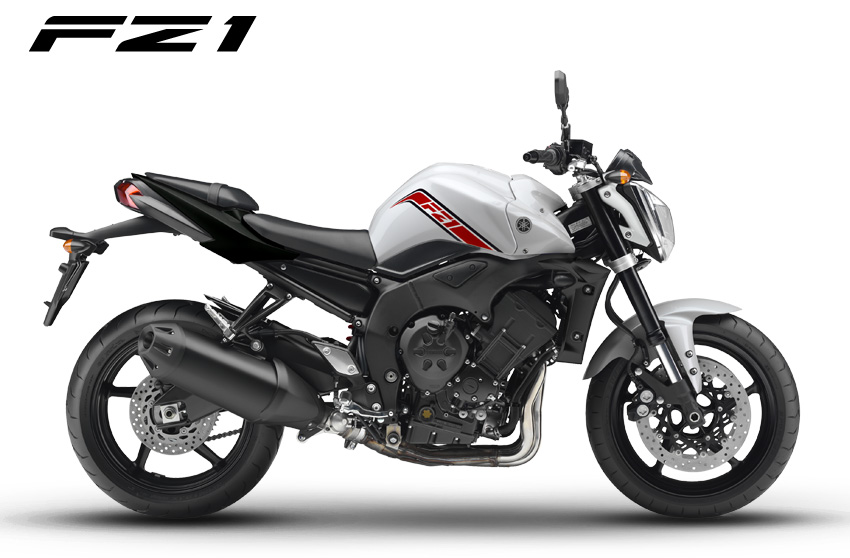

Yamaha FZ1

Dimensions
	Full Length(mm):	2140 mm
	Full Width(mm):	770 mm
	Full Height(mm):	1060 mm
	Wheelbase(mm):	1460 mm (Long wheelbase)
	Ground Clearance(mm):	135 mm
	Fuel Tank Capacity(litre):	18 litre (Large Fuel Tank)
Engine
	Kerb Weight(Kg):	214 Kg
	Engine Type:	Liquid Cooled, 4-stroke, DOHC, 5-valve
	Displacement CC:	998 CC (Good)
	Max Power:	150 PS/11,000 RPM
	Max Torque:	106 Nm/ 8,000 RPM
	Bore x Stroke:	77.0 x 53.6
	Compression Ratio:	11.5 : 1
	Starting:	Electric & Kick
	Ignition:	Transistorized Coil
	Clutch:	Wet, multi-plate
	Gear Box:	Constant mesh, 6-speed
	Chassis Type:	Diamond
	Front Suspension:	Telescopic fork
Brakes
	Rear Suspension:	Swingarm
	Front Brakes:	Dual Hydraulic disc brake Ø 320 mm
Wheels & Tyres
	Rear Brakes:	Single hydraulic disc brake Ø 245 mm
	Rim Size Front:	130 mm
	Rim Size Rear:	130 mm
	Tyre Size Front:	120/70 ZR17M/C (58W)
Electricals
	Tyre Size Rear:	190/50 ZR17M/C (73W)
Other Features
	Features:
	Liquid-cooled DOHC in-line four-cylinder, 5-valve engine with fuel injection offering optimum performance in the practical-use range,Fuel injection with sub-throttle valve for outstanding drivability and environment-friendly performance,Highly reliable specifications of YZF-R1 engine maintained, including cylinder and con-rod,Riding position with better machine grip feeling,A body design with the Monolite feel,3-way catalyzer with O2 sensor (lambda sensor), chamber-less exhaust pipe and short-type silencer,Five-spoke wheels in front and rear like on the YZF-R1,MOS X 64 caliper adopted on front brake
	Colors:	Black, White
