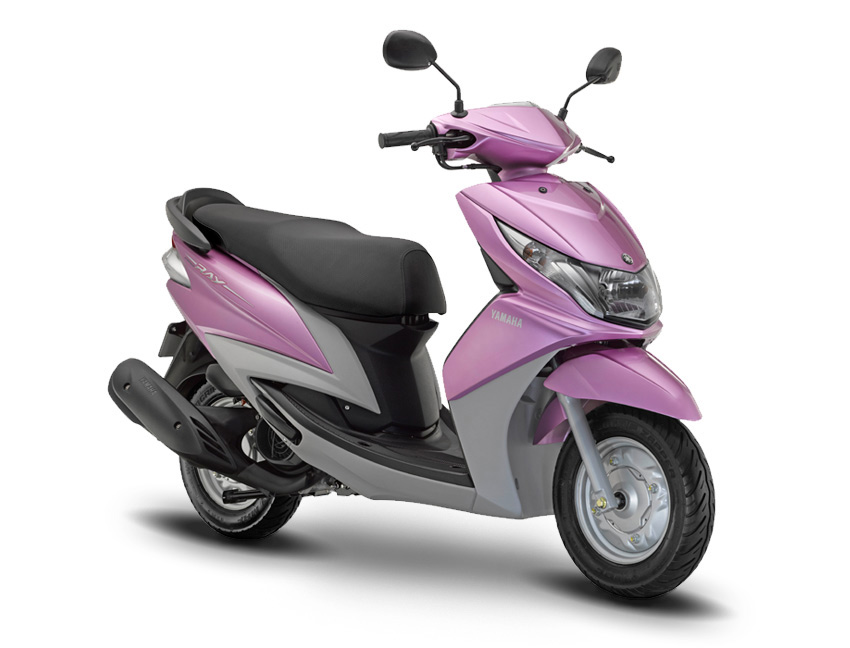

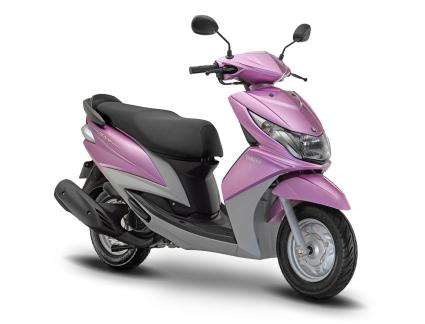

Yamaha Ray Z
₹ 49,236
| Dimensions | ||
|---|---|---|
| Full Length(mm): | 1835 mm | |
| Full Width(mm): | 675 mm | |
| Full Height(mm): | 1075 mm | |
| Wheelbase(mm): | 1270 mm | |
| Ground Clearance(mm): | 128 mm | |
| Fuel Tank Capacity(litre): | 5 litre | |
| Engine | ||
| Kerb Weight(Kg): | 104 Kg (Heavy) | |
| Engine Type: | Air-cooled, 4-stroke, SOHC, 2-valve | |
| Displacement CC: | 113 CC | |
| Max Power: | 5.2 KW ( 7 BHP) @ 7,500 RPM | |
| Max Torque: | 8.1 Nm @ 5000 RPM | |
| Bore x Stroke: | 50.0 X 57.8 | |
| Carburettor: | Yes | |
| Compression Ratio: | 9.2:1 | |
| Starting: | Electric & Kick | |
| Ignition: | C.D.I (Capacitor Dis | |
| Clutch: | Dry, centrifugal | |
| Gear Box: | V-belt automatic | |
| Chassis Type: | Underbone | |
| Front Suspension: | Telescopic | |
| Brakes | ||
| Rear Suspension: | Unit swing | |
| Front Brakes: | Drum brake, 130mm dia | |
| Wheels & Tyres | ||
| Rear Brakes: | Drum brake, 130mm dia | |
| Tyre Size Front: | 90/100-10 53J mm | |
| Electricals | ||
| Tyre Size Rear: | 90/100-10 53J mm | |
| Battery: | 12 V, 5 AH (10 AH) | |
| Head Light: | Halogen bulb 12V,35W/35W X1 | |
| Other Features | ||
| Features: | ||
113 CC Powerful Engine Carbon Pattern Comfortable Rear Seat Stylish Meter Visor Telescopic Suspension for stability Red Coil rear suspension Air cooled, 4-stroke, SOHC, 2-valve with CVT Top Speed of 85 km/h | ||
| Colors: | Black Thunder, Pristine White, Regal Red | |
| Mileage Highway: | 66 km/l (Fuel Efficient) | |
| Mileage City: | 58 km/l (Good City Mileage) | |
| Mileage Overall: | 62 km/l | |
